| Technical Specifications D14 DualDome |
|
|---|---|
Models |
IT, IT-DNight, Sec, Sec-DNight, Sec-180°, Sec-R16 |
Lenses |
22 to 135 mm format, horizontal angle 90° to 15° |
Sensitivity |
Color: 1 lux (t=1/60 s), 0,05 lux (t=1/1 s) |
2 Sensors |
2 x 1/2" CMOS, progressive scan |
Max. image resolution |
Color: 2048 x 1536 (3Mega), Black/White: 1280 x 960 (Mega) |
Image format |
2048 x 1536, 1280 x 960, 1024 x 768, 800 x 600, |
Max. frame rate (M-JPEG) |
VGA: 16 fps, TV-PAL: 12 fps, Mega: 6 fps, 3Mega: 4 fps |
Max. Video stream (MxPEG) |
VGA: 30 fps, TV-PAL: 24 fps, Mega: 14 fps, 3Mega: 10 fps |
Image compression |
MxPEG, M-JPEG, JPG, H.263 (Video-VoIP-Telephony) |
Internal DVR |
CF card (16 GB) or SD card (up to 32 GB) |
External storage |
Directly on NAS and PC/Server without additional recording software |
Software (inclusive) |
Video-Management-Software MxEasy, |
Image processing |
Backlight compensation, automatic white balance, image |
Virtual PTZ |
Digital Pan/Tilt/Zoom, continuous 8x zoom |
Alarm/Events |
Triggering of events by integrated multiple-window motion detection, external signal, temperature sensor, notification over email, FTP, IP-Telephony (VoIP, SIP), visual/acoustic alarm |
Audio |
Integrated microphone and speaker, Line-In/Line-Out, lip-synchronous audio, two-way speaker, audio recording |
Interfaces |
Ethernet 10/100, ISDN, USB, RS232, 1 x In, 1 x Out, Audio (Line-In/Line-Out) |
Audio/Telephony |
VoIP, SIP, two-way speaker, remote controlling of the camera in- and outputs, event notification |
Security |
User-/Group management, HTTPS/SSL, IP address filter, IEEE 802.1x, Intrusion Detection |
Certificates |
BGV C9 ("UVV"), EMV (living environments, industry), EN 50155 (shock, vibration, temperature), CE, FCC |
Power supply |
Year-round Power over Ethernet (IEEE 802.3af; Class 0), Netpower-Adapter, typ. 4 W |
Operating conditions |
IP65 with wall mount/IP54 w/o wall mount (DIN EN 60529), -30° bis +60 °C (-22°F to +140°F) |
Dimensions |
Ø x H: 20,1 x 11 cm, Weight: ca. 650 g |
Standard delivery |
Housing (high-resistance composites - PBT-PC), white, 2 x shockproof polycarbonate dome (transparent), free choice of 2 lens modules, mounting parts, allen wrench, patch cable, manual, software |
Available Accessories for DualDome D14 |
||
|---|---|---|
Vandalism Kit for D14 |
Wall Mount for D14 and D10 |
Pole and Corner Mount D14 and D10 |
|
|
|
|
|
|
Network Power Box 4 cameras |
ExtIO Extension Module |
Power Adapter PoE Set |
|
|
|
|
|
|
| Lens Table |
|||||||
|---|---|---|---|---|---|---|---|
| Order No. |
L11 |
L22 |
L32 |
L43 |
L65 |
L135 |
CS-Vario |
Original image |
|
|
|
|
|
|
|
35mm equivalent |
11 mm |
22 mm |
32 mm |
43 mm |
65 mm |
135 mm |
24-54 mm |
Real focal length |
1.8 mm |
4 mm |
6 mm |
8 mm |
12 mm |
25 mm |
4.5-10 mm |
Aperture |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.5 |
1.6-2.3 |
Image angle horizontally |
180° |
90° |
60° |
45° |
31° |
15° |
73°-37° |
Image angle vertically |
160° |
67° |
45° |
34° |
23° |
11° |
58°-28° |
Distance 1 m |
m |
m |
m |
m |
m |
m |
m |
• Image width |
∞ |
2.0 |
1.1 |
0.8 |
0.5 |
0.3 |
1.5-0.7 |
• Image height |
11 |
1.3 |
0.8 |
0.6 |
0.4 |
0.2 |
1.1-0.5 |
Distance 5 m |
m |
m |
m |
m |
m |
m |
m |
• Image width |
∞ |
10.0 |
5.7 |
4.1 |
2.7 |
1.3 |
7.4-3.3 |
• Image height |
55 |
6.6 |
4.1 |
3.0 |
2.0 |
1.0 |
5.5-2.5 |
Distance 10 m |
m |
m |
m |
m |
m |
m |
m |
• Image width |
∞ |
20.0 |
11.5 |
8.2 |
5.5 |
2.6 |
14.8-6.7 |
• Image height |
110 |
13.3 |
8.2 |
6.1 |
4.0 |
1.9 |
11.1-5 |
Distance 20 m |
m |
m |
m |
m |
m |
m |
m |
• Image width |
∞ |
40.0 |
23.0 |
16.4 |
11.0 |
5.2 |
29.6-13.3 |
• Image height |
220 |
26.6 |
16.4 |
12.2 |
8.0 |
3.8 |
22.2-10 |
Distance 50 m |
m |
m |
m |
m |
m |
m |
m |
• Image width |
∞ |
100.0 |
57.5 |
41.0 |
27.5 |
13.0 |
74-33.3 |
• Image height |
550 |
66.0 |
41.0 |
30.5 |
20.0 |
9.5 |
55-25 |
 |
|
|
 |
 |
|
Indoor/Outdoor: |
Dual lens indoor (IP54), -30...+60°C, |
Dual lens indoor (IP54), -30...+60°C • outdoor (IP65) when used with wall mount |
Lenses: |
Super Wide Angle |
Super Wide Angle |
Resolution: |
VGA (640x480 pixels each) |
VGA (640x480 pixels each) |
Zoom/Pan: |
Continuous up to 8x Zoom + Pan/Tilt (digital) |
Continuous up to 8x Zoom + Pan/Tilt (digital) |
Frame Rate (Mono): |
30 fps VGA • 30 fps CIF |
30 fps VGA • 30 fps CIF |
Sensitivity: |
1 lux (t=1/60s) • 0.05 lux (t=1/1s) |
Color: |
Interfaces: |
ISDN, Ethernet 10/100 Mbit, RS232 |
ISDN, Ethernet 10/100 Mbit, RS232 |
Internal DVR: |
Up to 32 GB with SD card |
Up to 32 GB with SD card |
Audio/Telephony: |
Bidirectional, IP telephony (VoIP), ISDN telephony |
Bidirectional, IP telephony (VoIP), ISDN telephony |
Power Supply • In/Out: |
PoE or MX30V • 1xIN, 1xOUT |
PoE or MX30V • 1xIN, 1xOUT |
Software Features: |
FTP, E-Mail, video alarm management, |
FTP, E-Mail, video alarm management, |
Arming • Triggering: |
365-day schedule • multiple events |
365-day schedule • multiple events |
External Storage: |
Up to 1 TB on PC/Server/NAS |
Up to 1 TB on PC/Server/NAS |
Article No.: |
D14Di-IT-D22D22 |
D14Di-IT-D22N22 |
| |
|
|
 |
 |
|
Indoor/Outdoor: |
Dual lens indoor (IP54), -30...+60°C • outdoor (IP65) when used with wall mount |
Dual lens indoor (IP54), -30...+60°C • outdoor (IP65), when used with wall mount |
Lenses: |
Super Wide Angle |
Super Wide Angle |
Resolution: |
3MEGA (2048x1536 pixels), color |
Color: |
Zoom/Pan: |
Continuous up to 8x Zoom & Pan/Tilt (digital) |
Continuous up to 8x Zoom + Pan/Tilt (digital) |
Frame Rate (Mono): |
30 fps VGA • 30 fps CIF • |
30 fps VGA • 30 fps CIF • |
Sensitivity: |
1 lux (t=1/60s) • 0.05 lux (t=1/1s) |
Color: |
Interfaces: |
ISDN, Ethernet 10/100 Mbit, RS232 |
ISDN, Ethernet 10/100 Mbit, RS232 |
Internal DVR: |
Up to 32 GB with SD card |
Up to 32 GB with SD card |
Audio/Telephony: |
Bidirectional, IP telephony (VoIP), ISDN telephony |
Bidirectional, IP telephony (VoIP), ISDN telephony |
Power Supply • In/Out: |
PoE or MX30V • 1xIN, 1xOUT |
PoE or MX30V • 1xIN, 1xOUT |
Software Features: |
FTP, E-Mail, video alarm management, video motion, Multiview, event search |
FTP, E-Mail, video alarm management, video motion, Multiview, event search |
Arming • Triggering: |
365-day schedule • multiple events |
365-day schedule • multiple events |
External Storage: |
Up to 1 TB on PC/Server/NAS |
Up to 1 TB on PC/Server/NAS |
Article No.: |
D14Di-Sec-D22D22 |
D14Di-Sec-D22N22 |
| |
||
 |
||
Indoor/Outdoor: |
Dual lens indoor (IP54), -30...+60 °C • outdoor (IP65) when used with wall mount |
|
Lenses: |
Super Wide Angle |
|
Resolution: |
Color or B/W: |
|
Zoom/Pan: |
Continuous up to 8x Zoom & Pan/Tilt (digital) |
|
Frame Rate (Mono): |
5 fps MEGA (panoramic view) |
|
Sensitivity: |
Color: |
|
Interfaces: |
ISDN, Ethernet 10/100 Mbit, RS232 |
|
Internal DVR: |
Up to 32 GB with SD card |
|
Audio/Telephony: |
Bidirectional, IP telephony (VoIP), ISDN telephony |
|
Power Supply • In/Out: |
PoE or MX30V • 1xIN, 1xOUT |
|
Software Features: |
FTP, E-Mail, video alarm management, video motion, Multiview, event search |
|
Arming • Triggering: |
365-day schedule • multiple events |
|
External Storage: |
Up to 1 TB on PC/Server/NAS |
|
Article No.: |
D14Di-Sec-180 |
|
Mounting Options
Mounting to a wall |
Mounting to a Ceiling |
|
|
When mounting the camera to a wall, make sure that the PIR sensor points into the direction where it is most useful; usually, it should point downwards. The wall outlet should be positioned so that it is directly behind the center of the camera housing. |

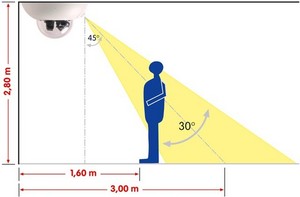

When mounting the camera to a ceiling, make sure that the PIR sensor points into the direction where it is most useful. The PIR sensor reaches about 10 meters (33 ft) and has a field of view of ±15°. The cable outlet should be positioned so that it is directly behind the center of the camera housing. |
Mounting Types D14D
The standard version of the D14 can be used with all MOBOTIX lenses with M14 thread and is available with different combinations of image sensors for daylight (color) and night images (black & white)
|
|
Standard version for all MOBOTIX M14 lenses; almost no limitations when positioning the two image sensors.
Mounting Types D14D-180°
The panorama version of the D14 has a horizontal field of view of 180° (2 x 90° L22 Super Wide Angle lenses) and delivers dual Mega images (max. 2560x960 pixels resolution, 960 lines). This camera is available as a daylight camera (D14D-180°, 2 x color image sensor) or a night camera (D14D-Night-180°, 2 x black & white image sensors).
|
|
The panorama version with 2 x 90° L22, joined dual image and 180° horizontal field of view is the ideal camera for monitoring the façade of a building.
Mounting Types D14M-CS
The Mono-CS version can be fitted with any CS-Mount lens (1" thread). This camera is available with a CS-Mount lens (24 - 54 mm) as a daylight camera (D14M-CS) or a night camera (D14M-Night-CS). Using C-Mount lenses is not possible in this camera.
|
|
